Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

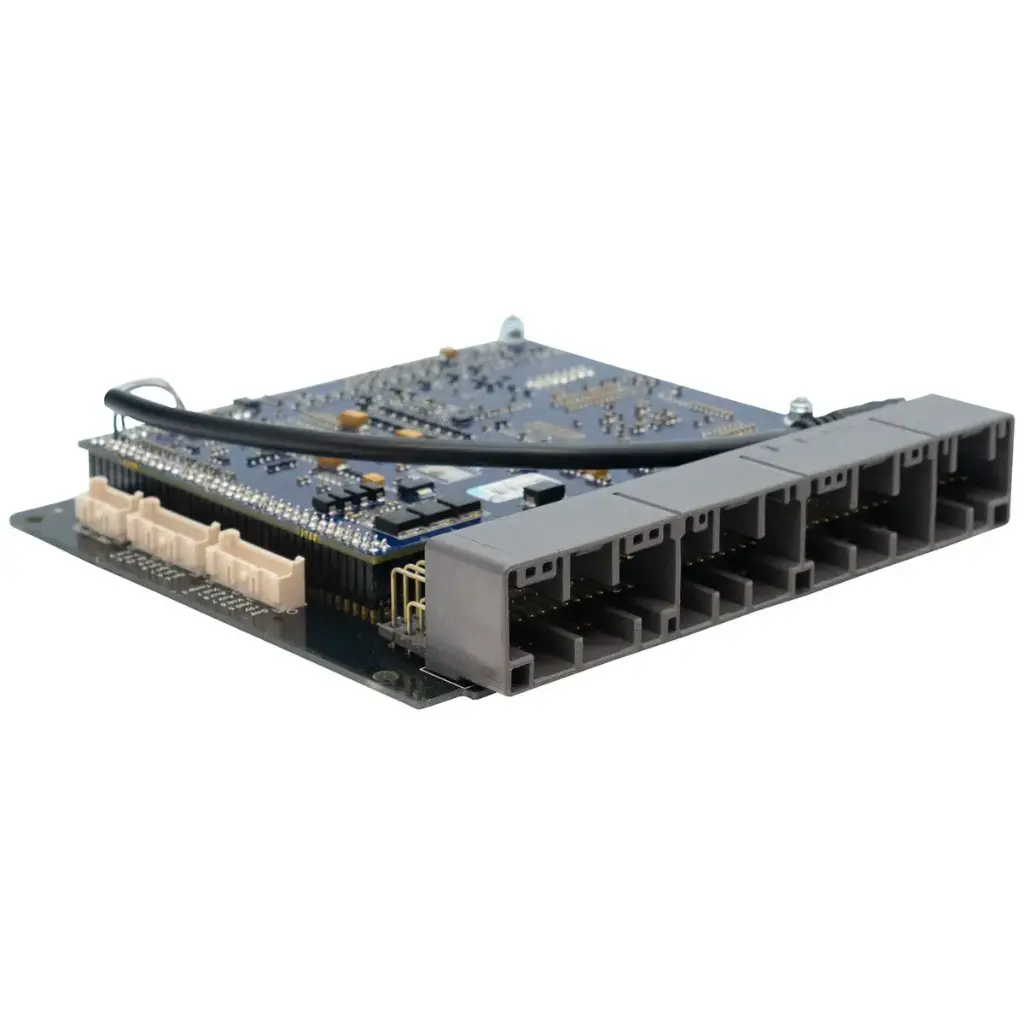

This ECU fits inside the factory OEM enclosure. Installation of the processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.
Designed for the 1996-1998 Honda B16 and B18 engine. All models that use the Honda “OBD2A” ECU.
- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- Onboard MAP sensor not included
- Most factory features are supported.
- Check the features tab for I/O input & output expansion options.
- This ECU will need a modification before E-Throttle is usable.
Suitable applications for 206-4000 Automotive Computer unit:
ACURA: 98-99 CL & 00-01
Integra LS/GS/GS-R/Type-R
HONDA: 98-02 Accord DX/LX/EX
99-00 Civic DX/LX/EX/Si
The following expansion connector inputs/outputs are provided:
Expansion Connector 1
Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
Volt 5 Analog 0-5V input
Volt 6 Analog 0-5V input §
Aux 7 Auxiliary Output
Aux 8 Auxiliary Output
Volt 7 Analog 0-5V input
Temp 3 Temperature sensor input
Expansion Connector 2
Ign 5 Ignition 5 Auxiliary Output
Ign 6 Ignition 6 Auxiliary Output
Ign 7 Ignition 7 Auxiliary Output
Ign 8 Ignition 8 Auxiliary Output
DI 9 Digital Input
DI 10 Digital Input
Volt 8 Analog 0-5V input
Volt 9 Analog 0-5V input
