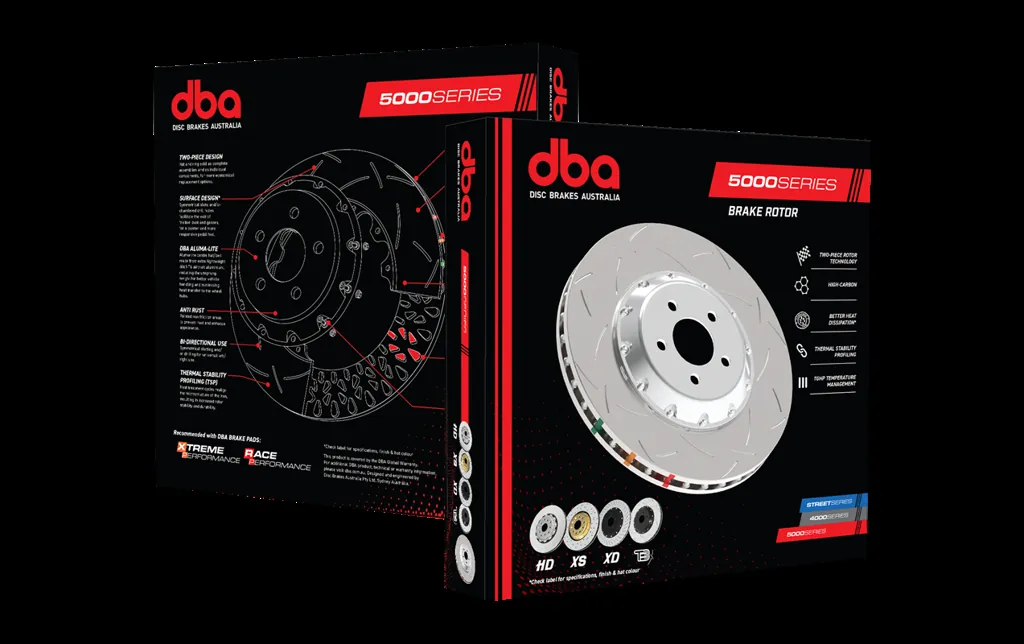

Componenti impianto frenante DBA 5000 series - T3 Slotted - Rotor Only Left Hand

Componenti impianto frenante DBA.

Dettagli tecnici

• Diametro [mm]: 380
• Spessore [mm]: 34
• Ventilazione disco: 72 Curved Vanes
• Annulus [mm] (Maximum useable pad width): 65
• Pitch Circle Diameter (P.C.D.): 231
• Inside Diameter [mm]: 250
• Diameter & Number of Bolt Holes [mm]: 8.15 (x10)
• Air Gap [mm]: 17
• Offset [mm]: 1,5
• Flange Inside Diameter [mm]: 207
• Flange Thickness [mm]: 8
• Hole Type: Round Hole
• Stage: Stage 5
• Replacement Nuts: Not Included
