Cod. KSU24001-1AX
Xtreme Clutch Clutch Kit - Xtreme Performance Extra Heavy Duty Organic 690Nm
The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles. These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle. They use an organic friction disc to retain drive-ability similar to standard.
Technical details
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25.2
- Flywheel Step: -15.0mm/.590""""
- Torque (Nm): 690
- Clamp Force: --
- Clamp Force Increase: --
- Stage: Stage 1X
- Usage: Street Upgrade
- Design: Single Plate Sprung Organic Disc – designed for lightly modified street vehicles. Provides smooth engagement and reliable performance under everyday driving conditions.

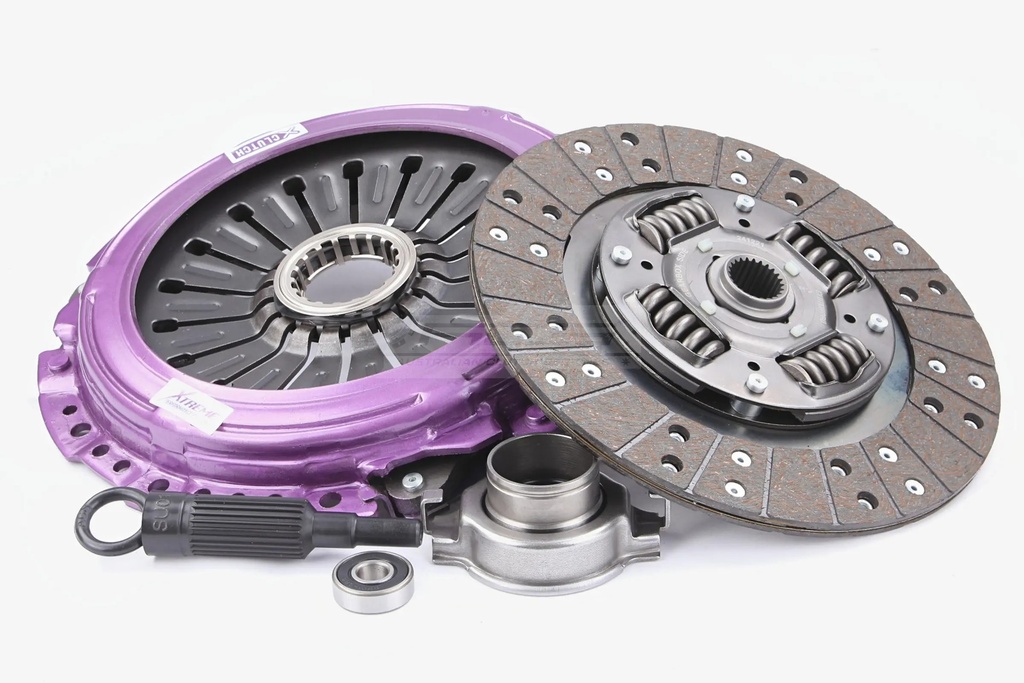

- Kit Includes: Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
- Flywheel: Not included
- Additional information: Suits 6 Speed Gearbox
