Cod. KSU24001-1C

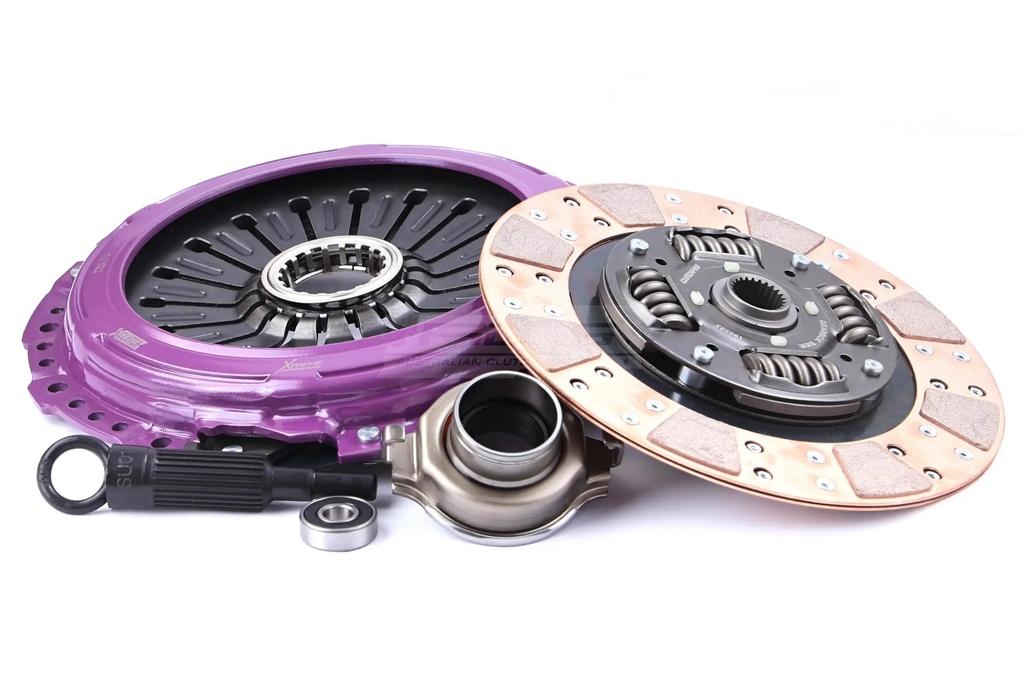

Xtreme Clutch Clutch Kit - Xtreme Performance Heavy Duty Cushioned Ceramic 1250kg (25% inc) 870Nm
Xtreme Performance - Cushioned Ceramic kit /-1C Recommended for: Motorsport Applications These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications. Specifications: Torque capacity 870Nm Clamp load 1250Kg 25% Increased over standard Cushioned Ceramic Friction Disc Heavy Duty Pressure Plate Kit contains everything you need for a successful installation + accessories The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications. Xtreme Performance At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs. What's in the Box? Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Technical details
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25.2
- Flywheel Step: -15.0mm/.590""""
- Torque (Nm): 865
- Clamp Force: 1250Kg
- Clamp Force Increase: 25%
- Stage: Stage 2
- Usage: Track Use
- Design: Single Plate Cushioned Ceramic Disc – designed to deliver increased torque and heat capacity while maintaining smoother engagement than a standard ceramic disc, thanks to its cushioned friction surface.
- Kit Includes: Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool
- Flywheel: Not included
- Additional information: Suits 6 Speed Gearbox
