Cod. KSU20526-2E

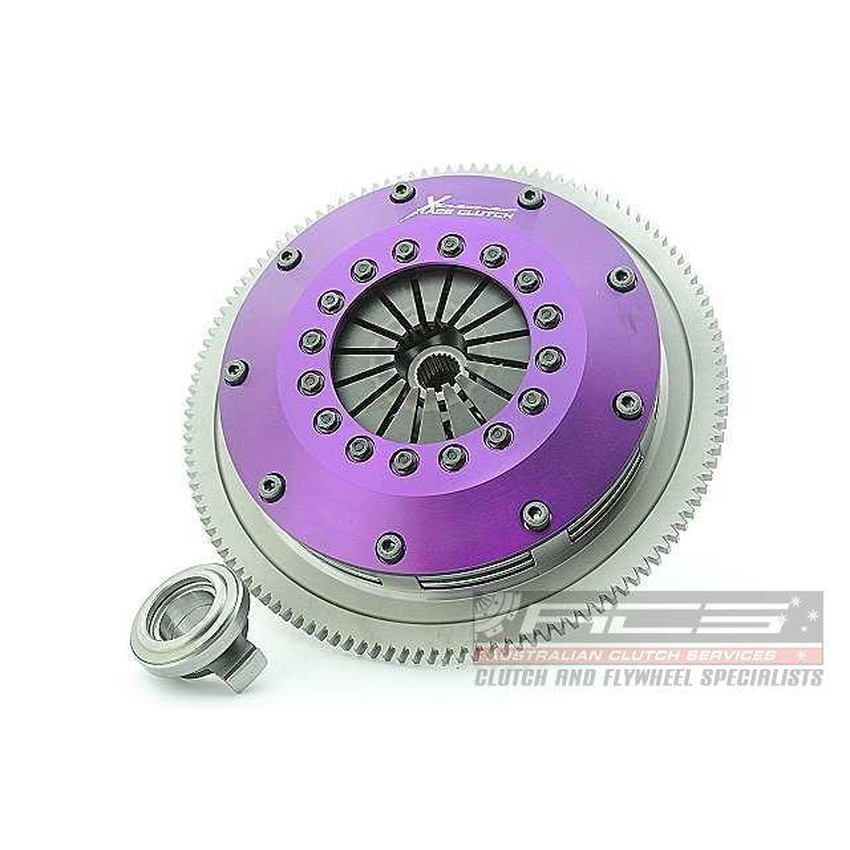

Xtreme Clutch Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Motorsport 200mm twin plate The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features: Torque capacity 1200Nm Kit contains everything you need for a successful installation + accessories Rigid driven discs (individual hubs) Push type billet alloy cover 4140 Chromoly pressure & intermediate plates Hardened steel wear posts Low inertia Serviceable components SFI certified design Clamping Force 1000kg Torque Rating 1200Nm Bearing Contact Diameter 44-52mm Bearing Load (@ 48mm) 218kg Release Travel Required 6mm Assembly Mass (without flywheel) 7kg Disc Set Static Mass 1.75kg Friction Thickness New 7mm (0.275") Friction Thickness Worn 6.48mm (0.255")
Technical details
- Clutch Disc Diameter (mm): 200
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 25.3
- Torque (Nm): 1200
- Flywheel Step: +2.2mm
- Design: Twin Plate
- Stage: Multiplate - track use only
- Clamp Load: 1100Kg
- Recommended for: Motorsport
- Ring Gear Tooth count:
- Additional infotmation:
